Software BNG · vBNG · LNS · CGNAT · x86-64

Carrier-grade software BNG, LNS & CGNAT.

A software BNG — a virtual BNG (vBNG) — that terminates up to 100,000 subscribers (PPPoE, IPoE and L2TP LNS), with integrated CGNAT and a full BGP / IGP / MPLS L3VPN routing stack, on standard x86 servers.

Start free evaluation Read the datasheet

Forwarding in production Runs our own network Free up to 50 subscribers

At a glance

Subscriber capacity: 100,000 sessions
Access protocols: PPPoE · IPoE · L2TP LNS
Routing: BGP · IS-IS/OSPF · MPLS
CGNAT: included
Licence axis: subscribers only
Platform: standard x86-64 servers

One appliance, from the access hand-off to the core

Subscriber termination, carrier NAT and provider-edge routing on the same system — no separate boxes, no per-feature licences.

Subscriber termination

L2TP LNS for wholesale hand-offs, PPPoE access concentration, and IPoE with DHCP. A dual-stack subscriber is one session per access circuit.

RFC 2516 · RFC 2661 · TR-101 · Option 82

Explore termination

Routing on the box

BGP with VPNv4 and VPNv6, a selectable IGP (IS-IS, OSPF, or none), MPLS L3VPN and per-service VRFs. The BNG is a first-class provider edge in your core.

MP-BGP · IS-IS / OSPF · LDP · ECMP · multi-VRF

Explore routing

Carrier-grade NAT (CGNAT), included

NAT44 with sequence-numbered port-block logging, in every licence. Translating a subscriber does not make them a second billable unit.

NAT44 · EIF · RFC 5424 port-block logs

Explore CGNAT

See it running

Every claim on this site is a screen in the management portal — here, on demo data.

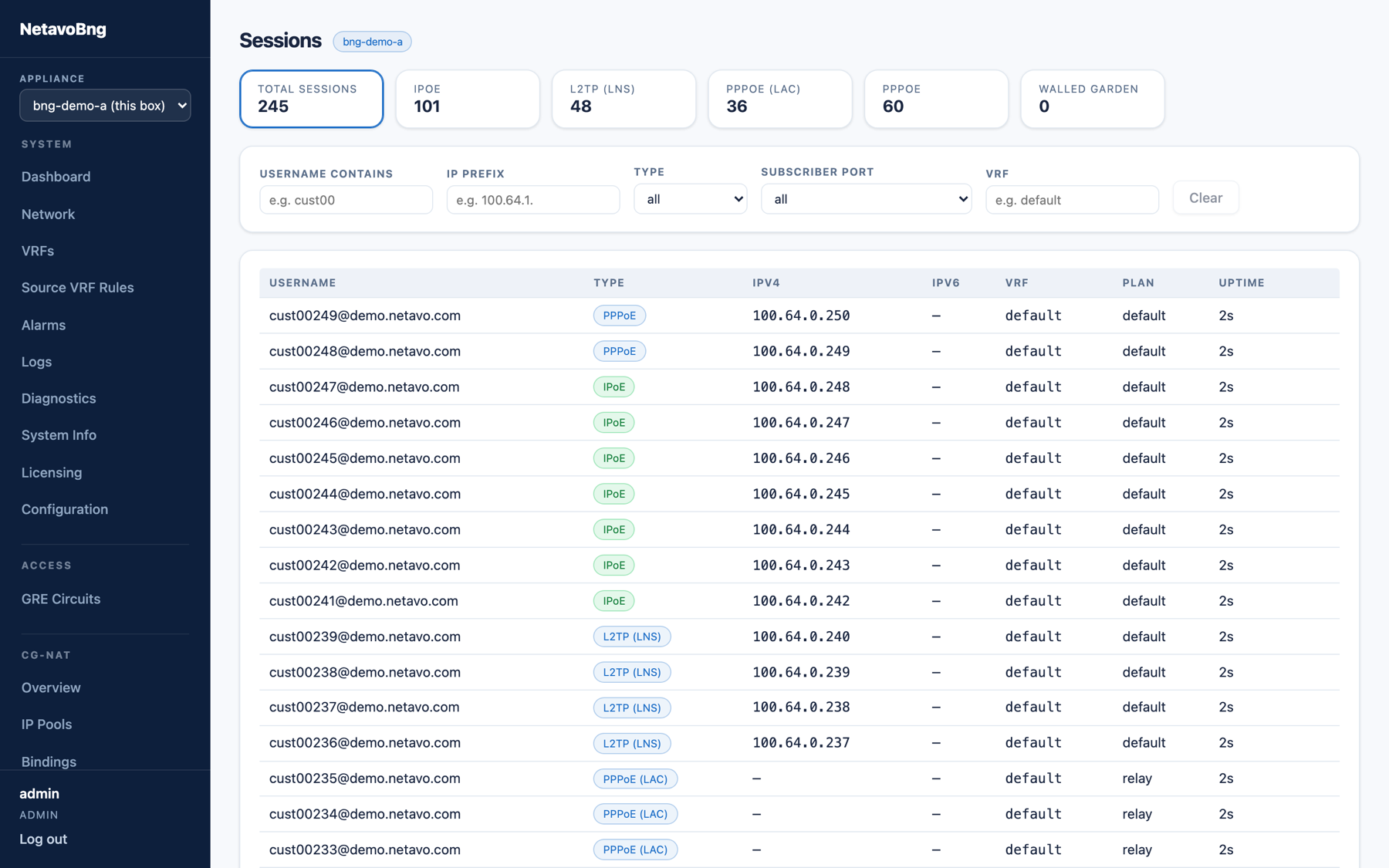

Live subscriber sessions in the Netavo BNG management portal

The management portal on demo data: 200+ live subscriber sessions across PPPoE, IPoE and L2TP LNS.

Specifications

Everything below is a command you can run against the evaluation build.

Capability	Detail
Subscriber sessions	PPPoE, IPoE, L2TP LNS · dual-stack, one session per circuit · 100k capacity
Routing	MP-BGP (VPNv4/VPNv6) · IS-IS / OSPF / none · MPLS L3VPN · ECMP · multi-VRF
CGNAT	NAT44 · endpoint-independent filtering · sequence-numbered RFC 5424 port-block logs
AAA	RADIUS (PAP/CHAP-MD5) · CoA/Disconnect (RFC 5176) · direct database driver
Data plane	DPDK / AF_XDP · shared-memory state · forwards while the control plane restarts
Platform	x86-64 · standard servers, no appliance lock-in

Licensed on one number: subscribers

No bandwidth tier, no per-core calculation, no feature add-on list. Move to a larger server and forward more traffic; the licence is unchanged. Quoted in pounds, euros or US dollars.

See pricing bands

subscribers

on request

subscribers

on request

25k

subscribers

on request

∞

unlimited

on request

Planning an ASR 1000 migration? The fixed-configuration line is on Cisco's end-of-life track — ASR1001-HX software maintenance ends July 2026, with no like-for-like successor announced. Netavo BNG is a software migration path on standard x86 servers. Migration notes →

Evaluate Netavo BNG on your own hardware

Free evaluation up to 50 subscribers. No payment details required.

Start free evaluation Talk to an engineer
